Indoor Fixed Led Screen/Double Sided Led Display
Front Maintenance Indoor Led Screen
Ultra Slim LED Display Screen/Ultra-Thin Double Sided LED Display
u Indoor led display screen/ Ultra-thin LED display screen/ Double Sided LED Display
Ultra-thin LED display Features:
• Double-sided LED Display Screen
• Screen thickness: 24mm (single-sided), 30mm (double-sided)
• Refresh rate: 7680Hz
• Weight: 20kg/square meter
• Installation methods: Ceiling mounting, side mounting, wall mounting
• Material: Aluminum profile cabinet, lightweight and thin
• The screen uses a rigid connection design, eliminating the need for wiring during module installation, making it convenient and quick!
• Cabinet sizes available: 500*500mm and 500*1000mm
• Installation method:Hanging/Wall mounting/Variety of shapes
P2.6 indoor ultra thin dobule side LED display Paramenters:
| MODEL | PH2.6 |
| Pixel Pitch (Resolution) | 2.6mm |
| LED configuration | SMD 2020 |
| Module size | 250*250mm |
| Scan mode | 1/32 scan |
| Pixel matrix per Module | 96*96 dots |
| Pixels Per Sq.Meter(Density) | 147456(dots/sqm) |
| Cabinet size | 500mm*500mm |
| Cabinet Resolution | 192*192dots |
| Thickness(Single-sided/Double-sided) | (Single thickness 24mm,double thickness 30mm) |
| Screen size | Customizable according to Cabinet size |
| Maintenance Method | Front maintenance |
| Refresh Rate | 7680HZ |
| Color Depth | 14-16 bit |
| Brightness | 600-800nits |
| Ideal Viewing Angle | 160°(H)/140°(V) |
| Input Voltage | AC 110V/220V±10%,50Hz/60Hz |
| Max.Power Consumption | 750W/m² |
| Avg.Power consumption | 250W/m² |
| Working Temperature | -40 -50(℃) |
| Operating Humidity | 10%~95% non-condensing |
| Video Format | Support RM,FLV,AVI,MP4 and other mainstream video formats |
| Picture Format | Support JPG,PNG,and other image formats |
| Life Time | ≥100000(Hours) |

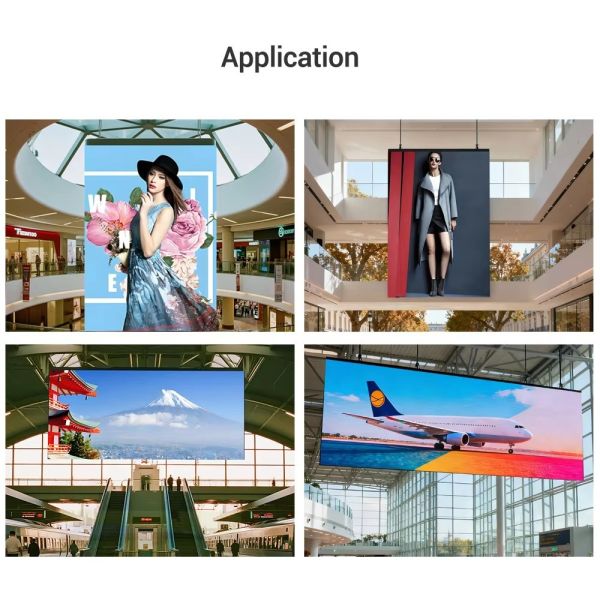

Ultra thin LED display Specification:
Commercial retail field
-
Booth in the central hall of the shopping mall: Ultra thin LED display, double-sided display of product promotion information or brand image, attracting attention from both sides.
-
At the entrance of the fitting room of the clothing store: a double-sided ultra-thin LED display , one side displays dressing suggestions, and the other side plays brand new product videos to enhance customers' shopping experience.
Public service space
-
Hospital lobby/airport waiting hall: Double sided LED display , hung above the aisle, displays public information such as flight status, medical guidance, queue calls, etc. synchronously or separately on both sides, covering more people.
-
Office building elevator hall: Ultra thin LED display screen, Double sided LED display,ultra-thin design does not occupy small space, double-sided loop playback of corporate announcements, property notices or commercial advertisements.
Cultural and entertainment venues
-
Theater/Concert Hall Front Desk: Display performance introductions, actor information, ultra-thin LED display , Double sided LED display,double-sided design allows audiences from different directions to access content.
Esports Arena/Internet Cafe
Ultra-thin LED display advantage:
High space utilization rate
-
Ultra thin body (HSCLED thickness within 3cm), no need to reserve a large amount of back space during installation. The ultra-thin LED display-Double sided LED display can be directly wall mounted, suspended or embedded in the wall, especially suitable for narrow indoor environments.
-
The dual sided display function of Double sided LED display(ultra-thin LED screen) is equivalent to "one screen realizing the value of two screens", reducing the number of devices and saving installation space.
Excellent visual effect
-
The ultra-thin LED display has high brightness (600-900cd/㎡, suitable for indoor lighting), high contrast, and wide viewing angle on both sides. No matter which side is viewed, the picture is clear and delicate, without color deviation.
-
The ultra-thin LED display (Double sided LED display) supports seamless splicing and can be customized in size according to needs to form a large-sized LED double-sided display, meeting the needs of brand image display or large-scale information release.
Lower usage cost
-
Compared to installing two single-sided screens at the same time, double-sided LED display(ultra-thin screen) have lower procurement, installation, and maintenance costs, reducing the workload of wiring and equipment management.
-
Ultra thin LED display(Double sided LED display), using energy-saving LED beads, with lower power consumption than traditional display devices, can save electricity expenses for long-term use.
Flexible installation
-
The ultra-thin LED display(Double sided LED display) supports various installation methods such as wall mounted, suspended, and vertical, and can be adjusted according to the site structure to adapt to different indoor layouts.
-
Easy to operate: Ultra thin LED display, Double sided LED display,supports remote control, can update double-sided content synchronously through mobile phone or computer, without on-site operation, improving management efficiency.
